Multi-layer Surface Modelling

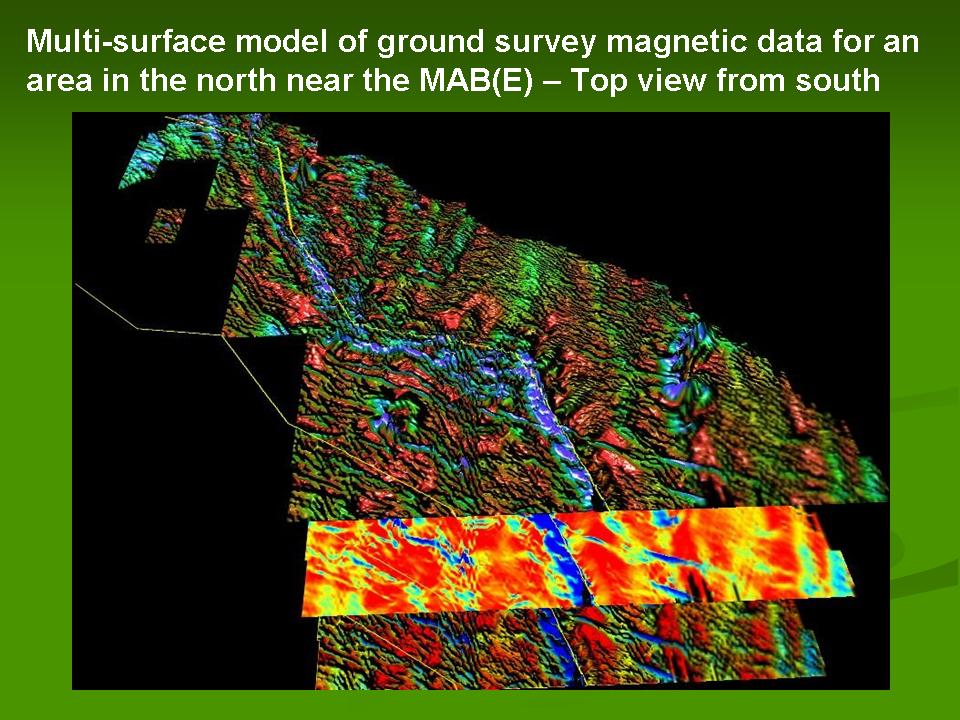

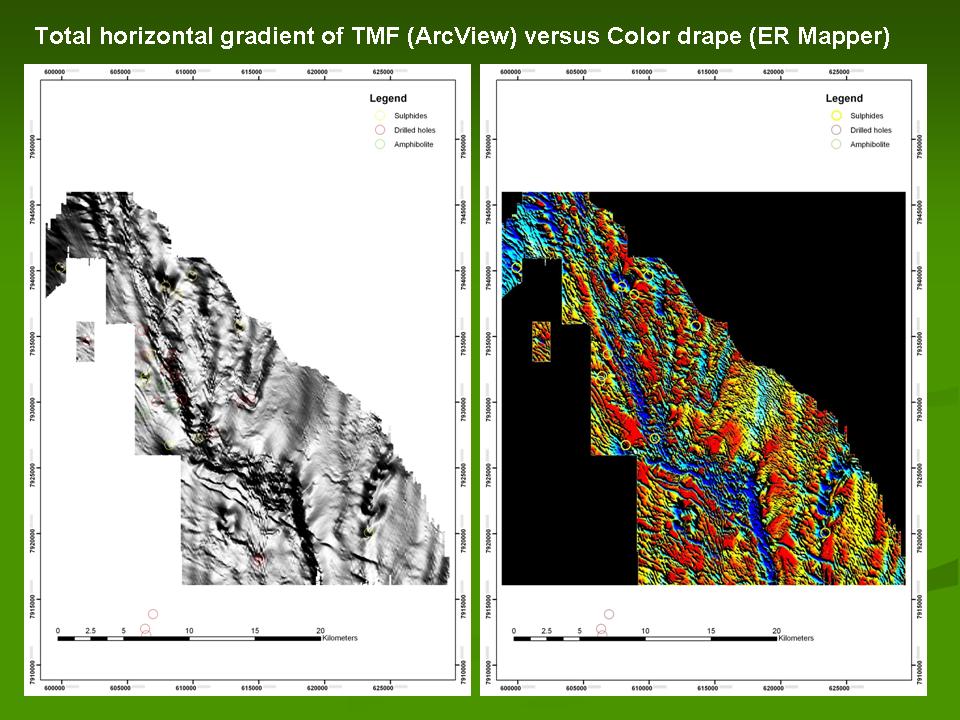

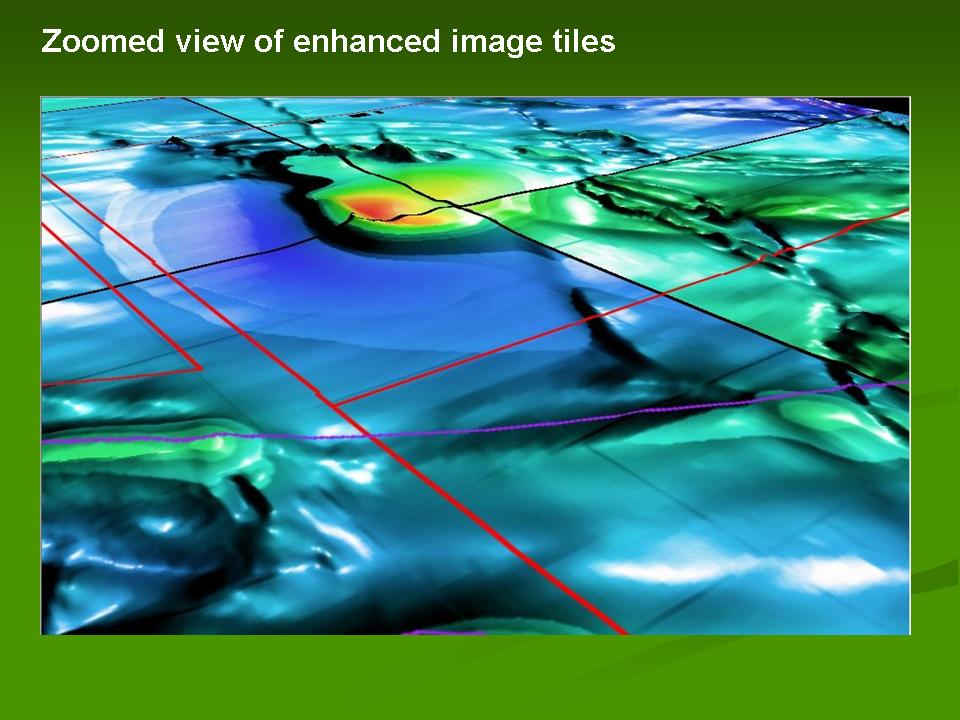

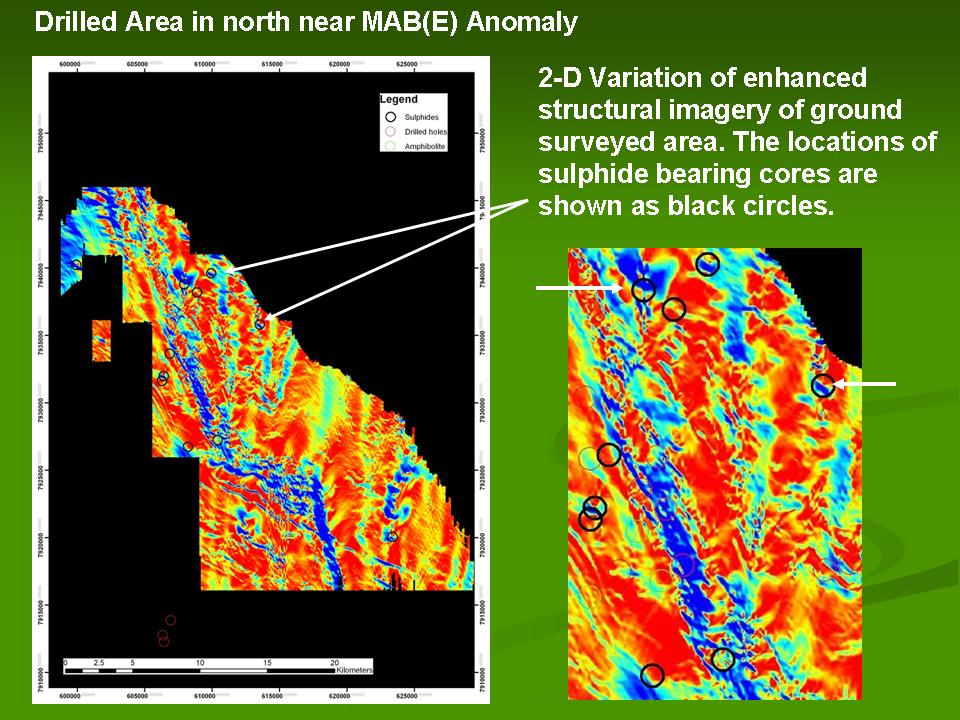

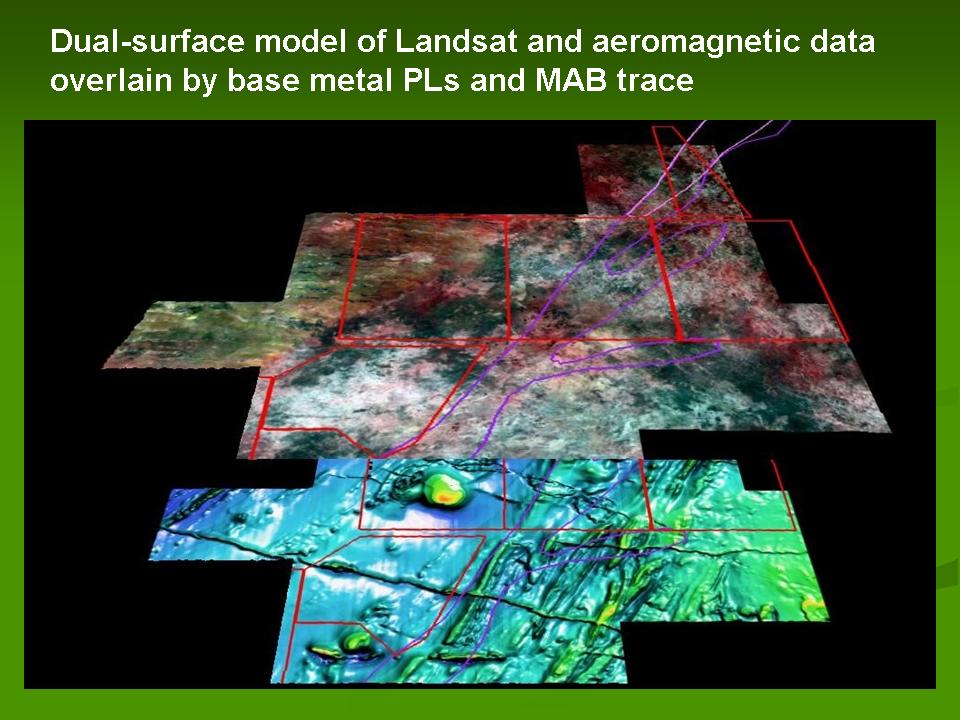

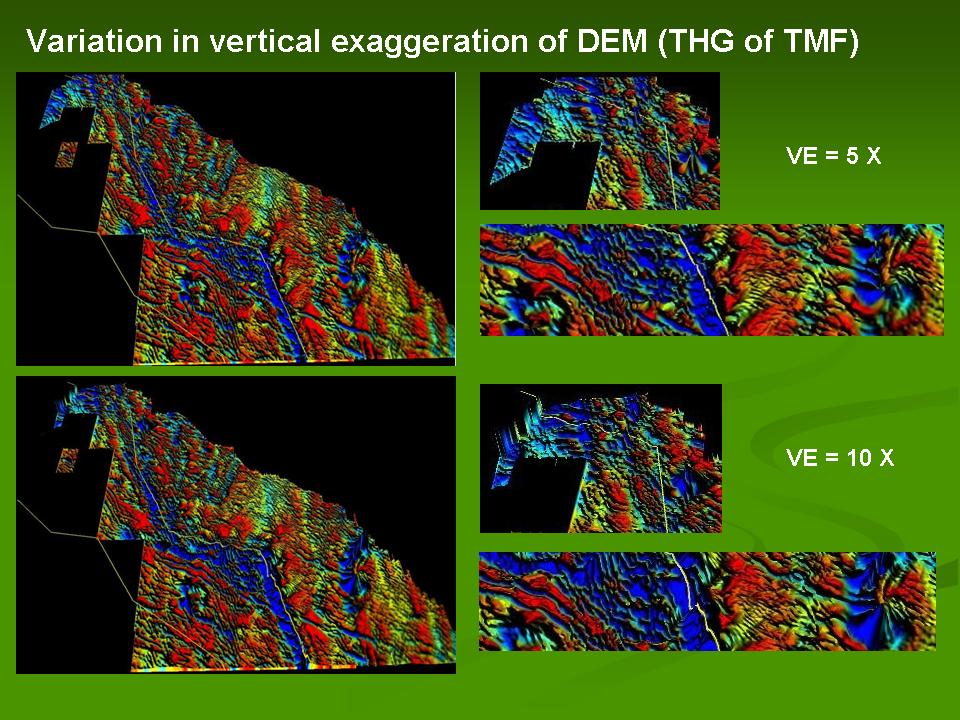

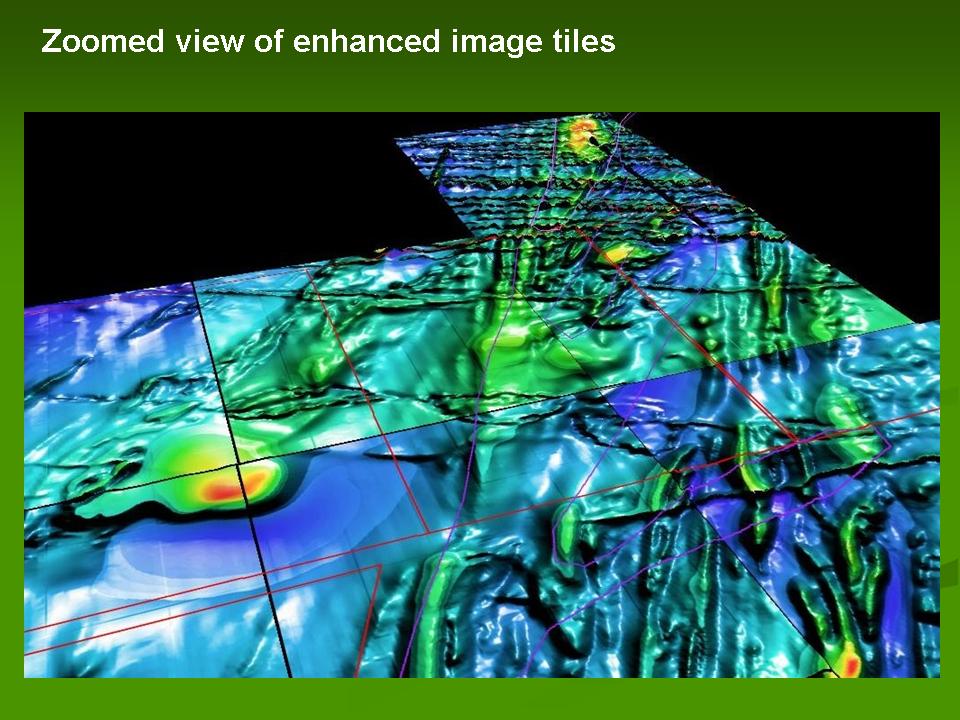

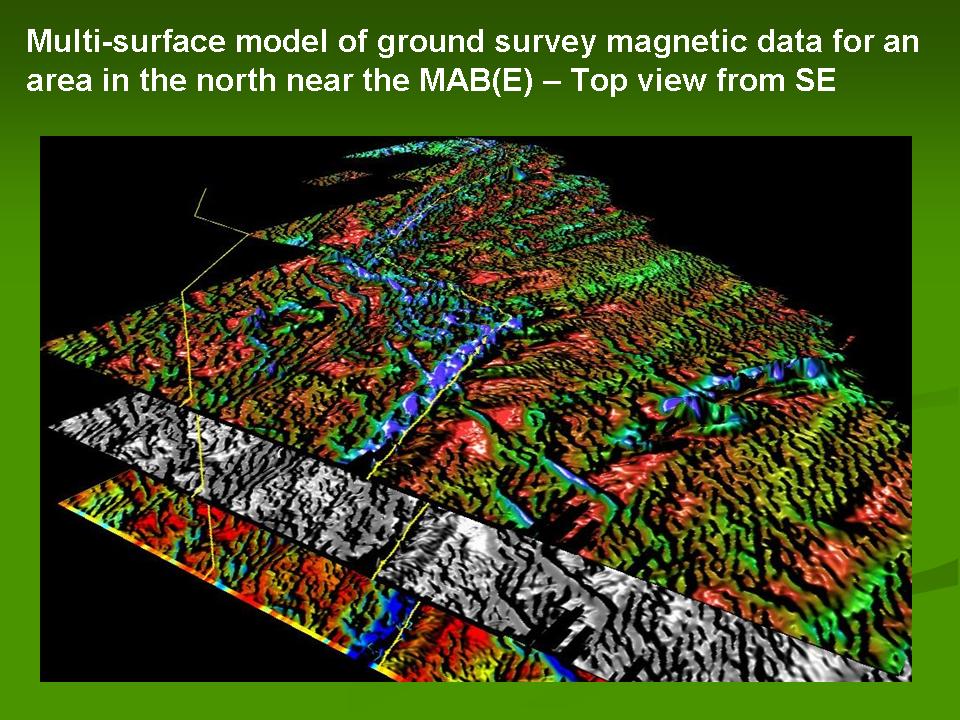

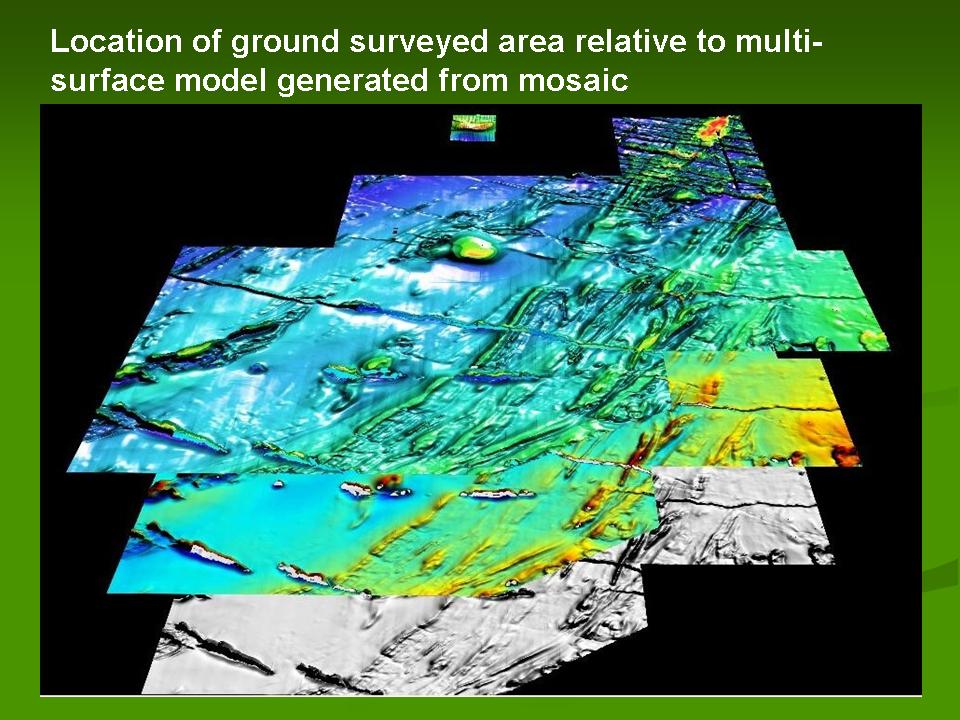

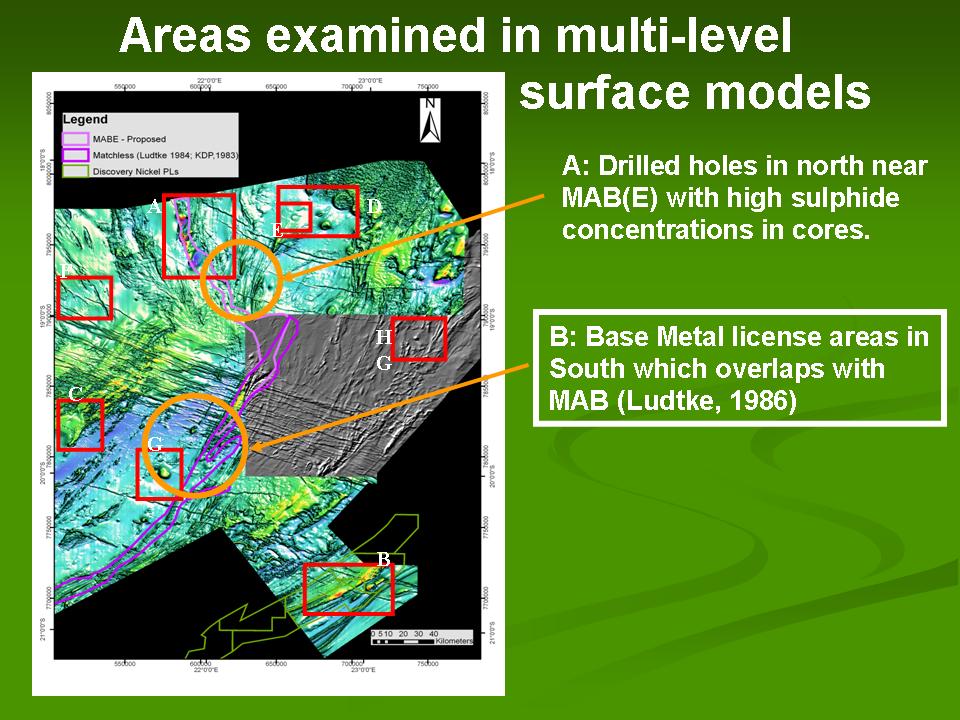

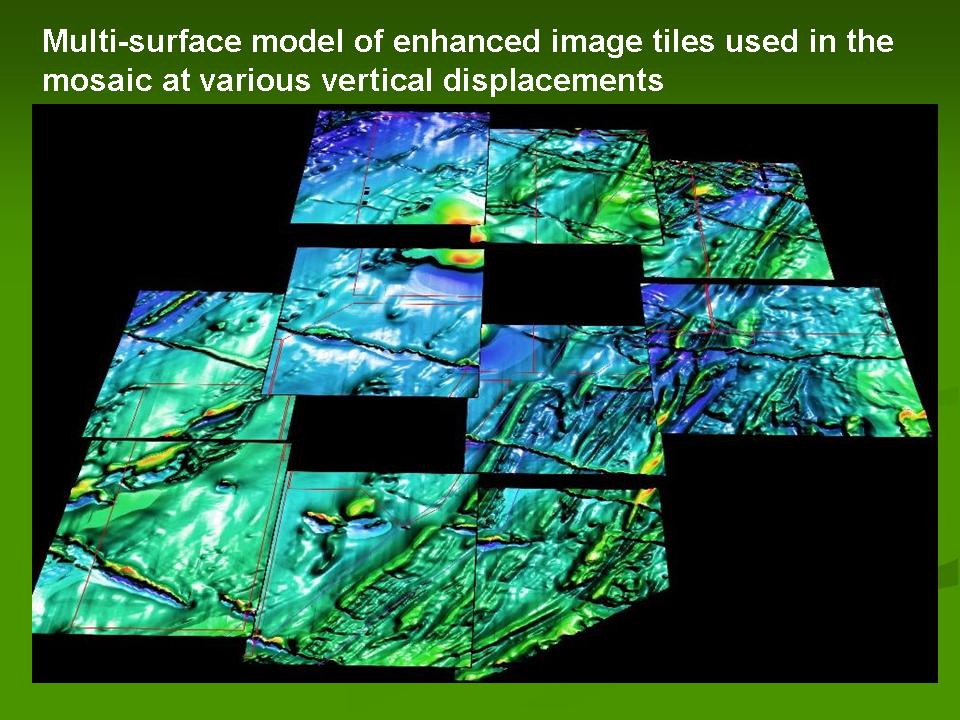

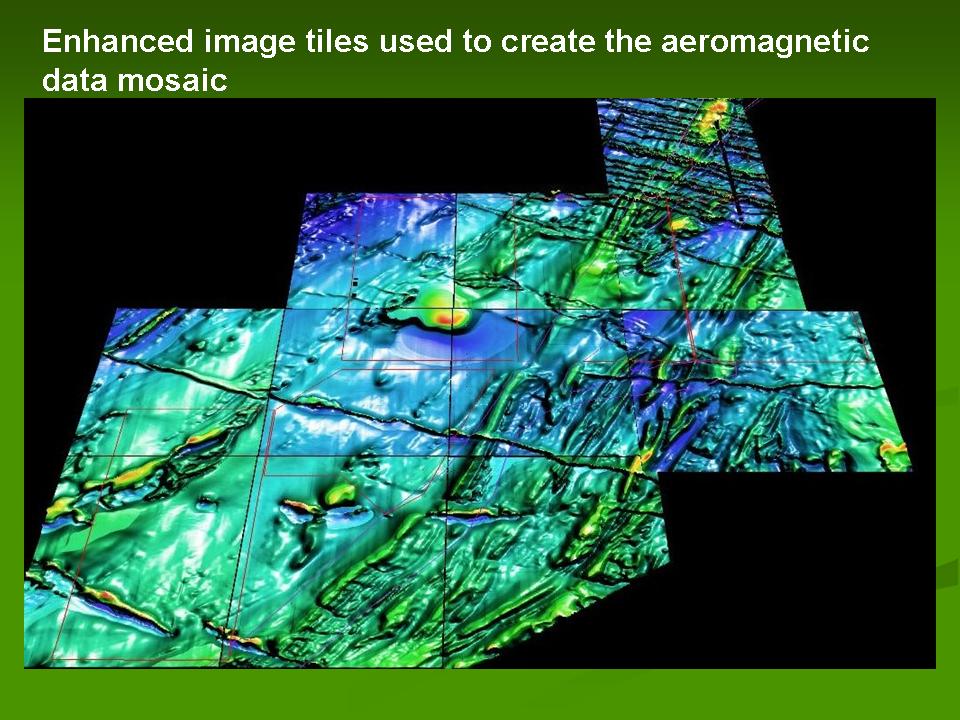

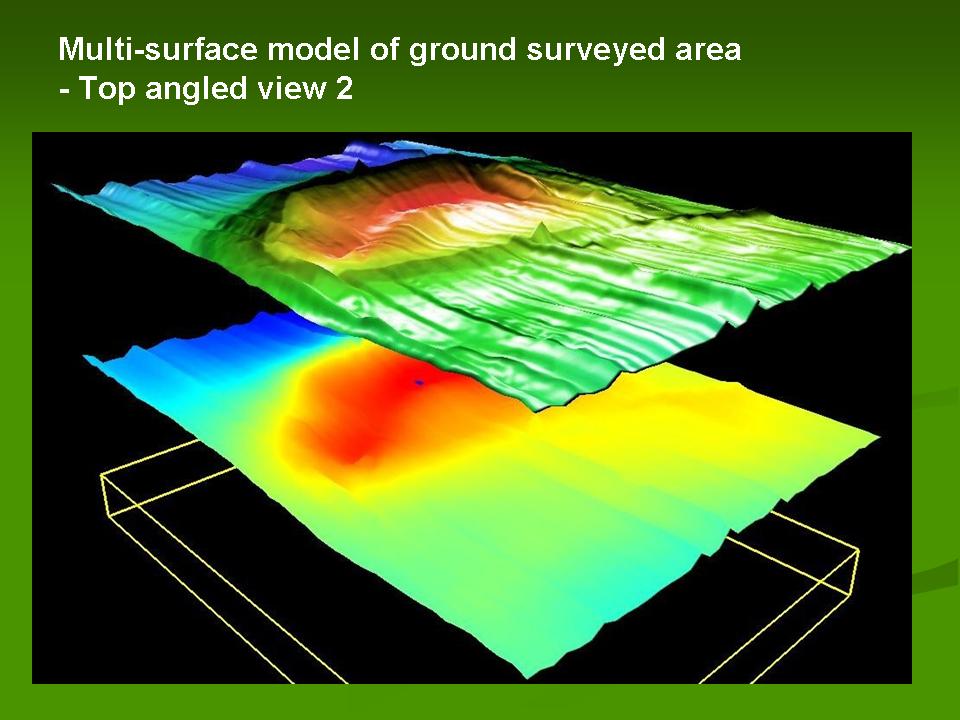

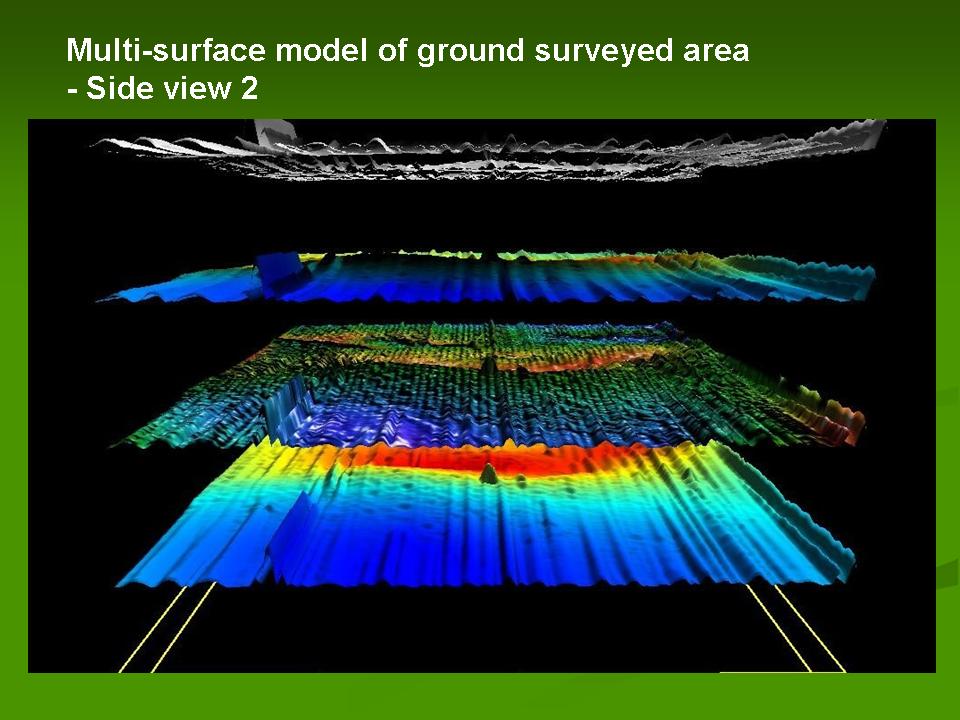

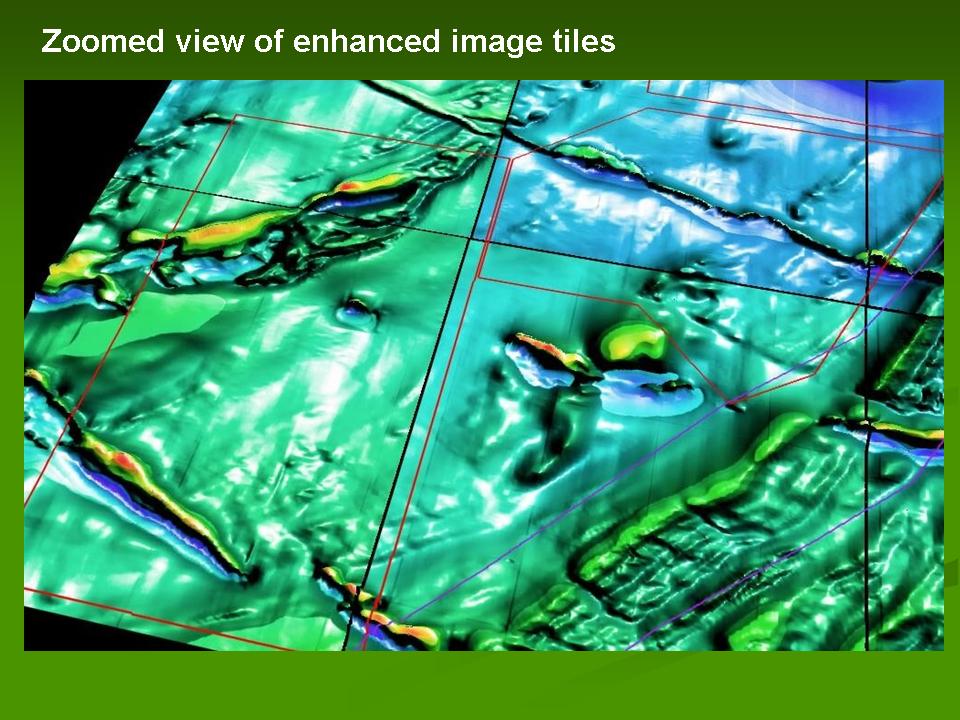

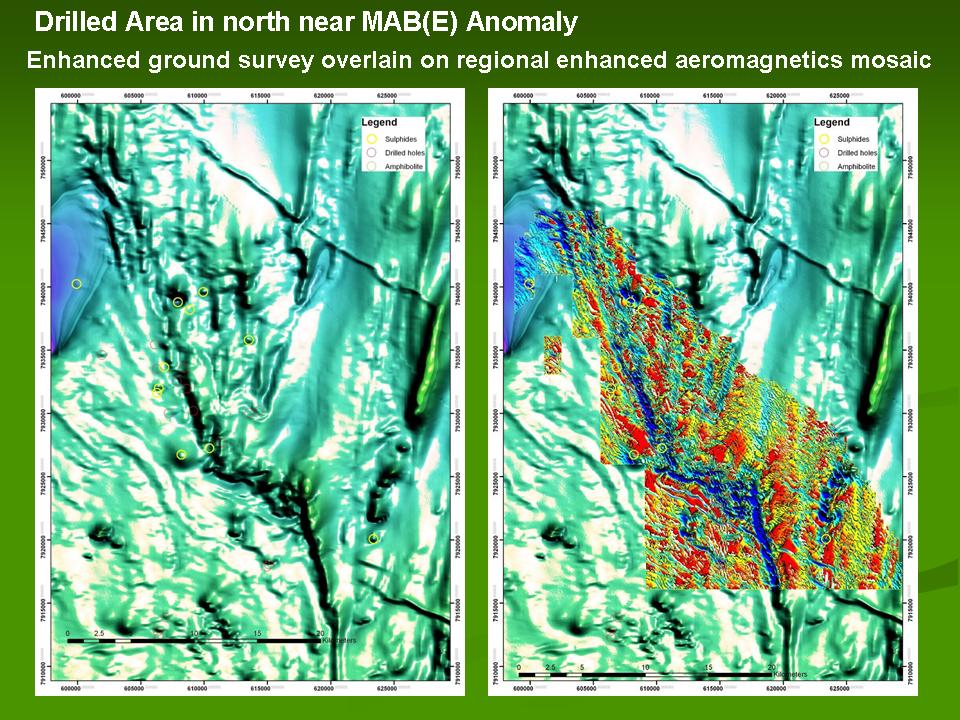

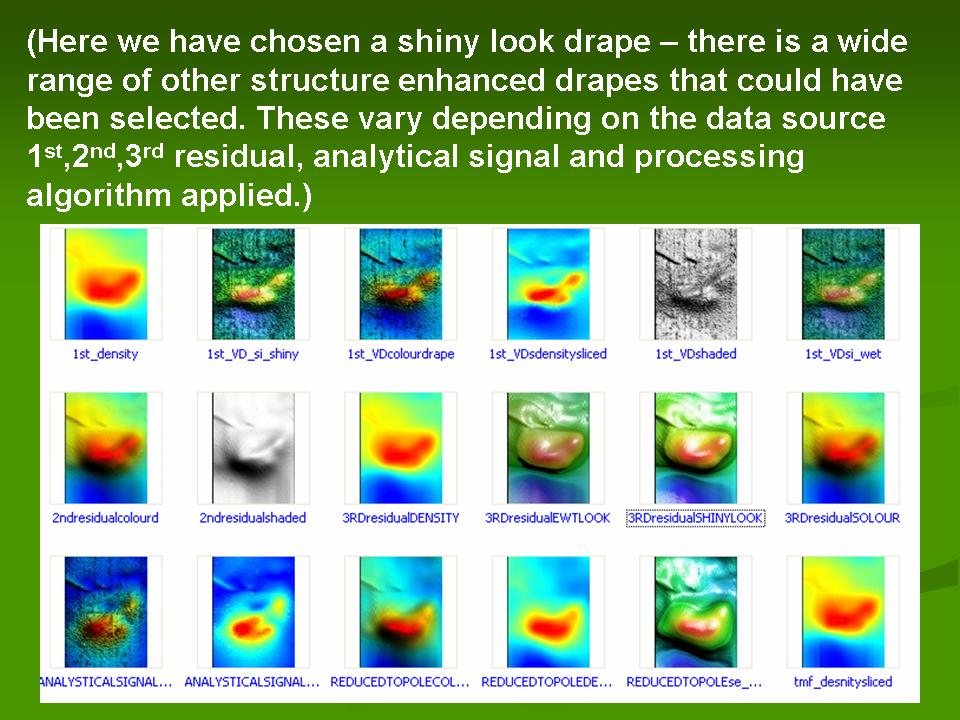

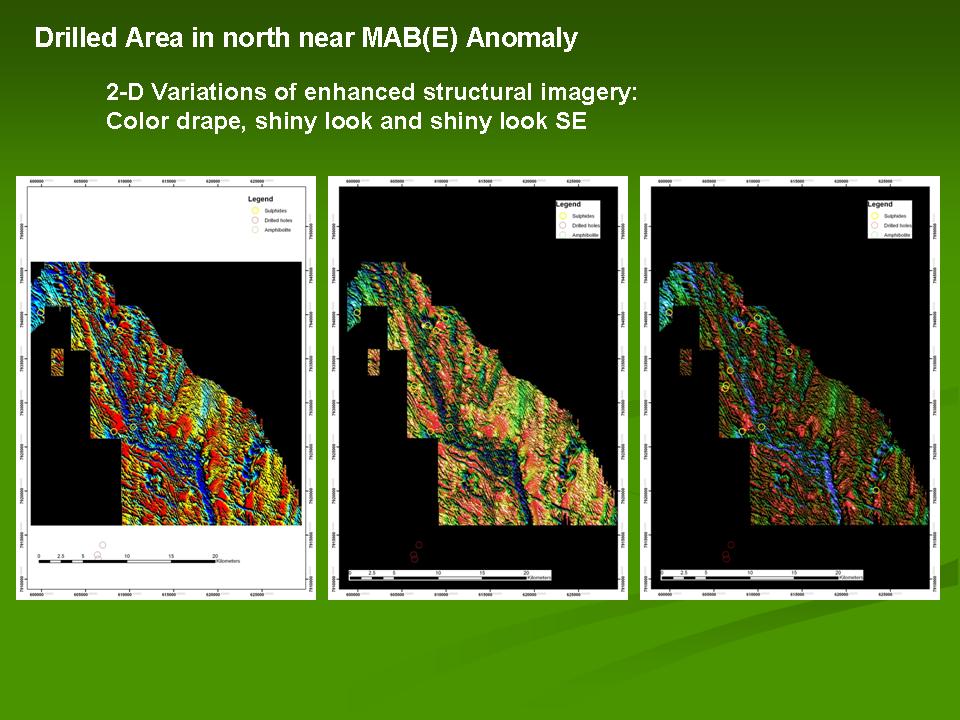

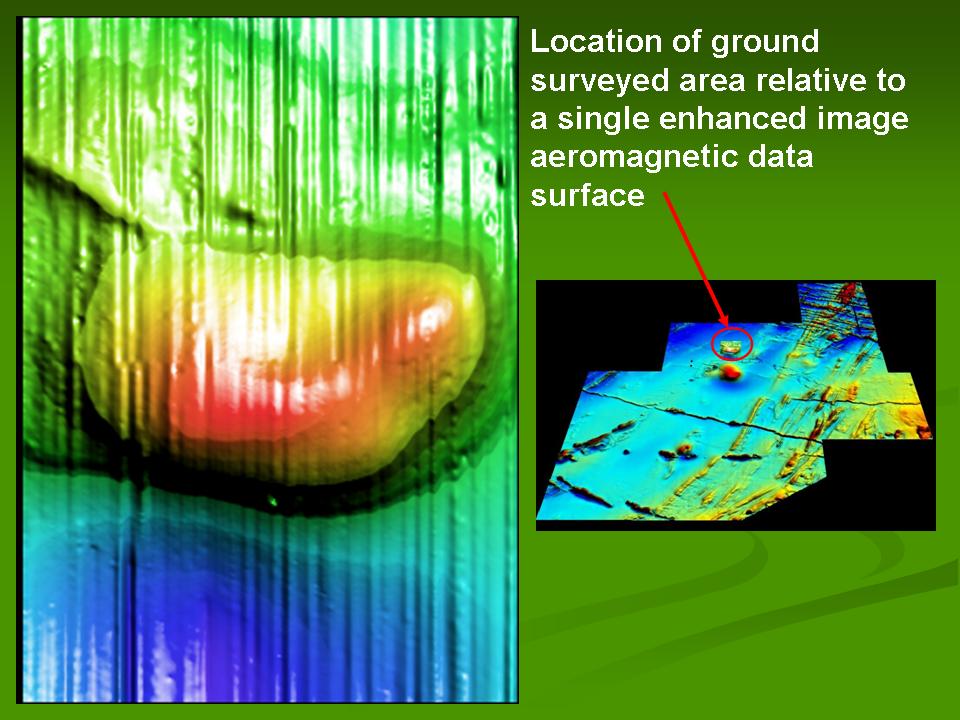

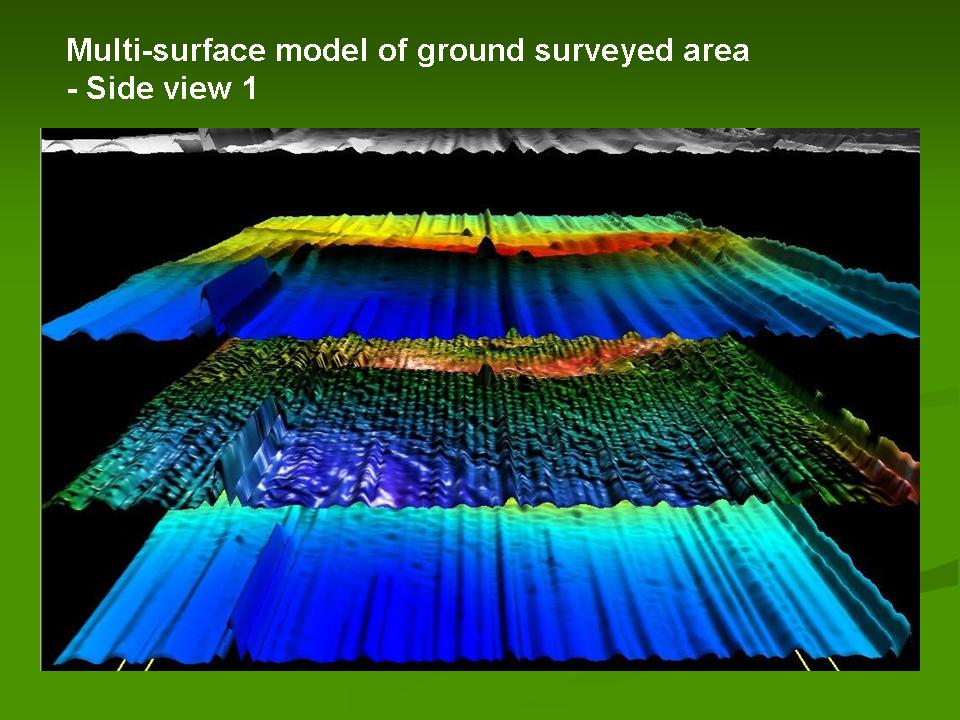

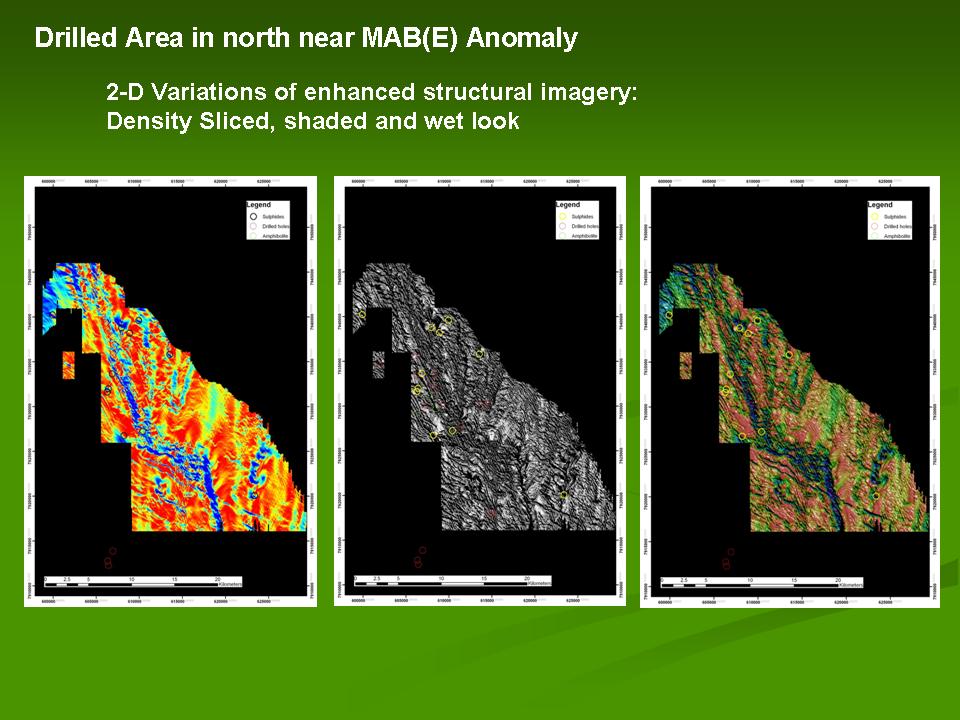

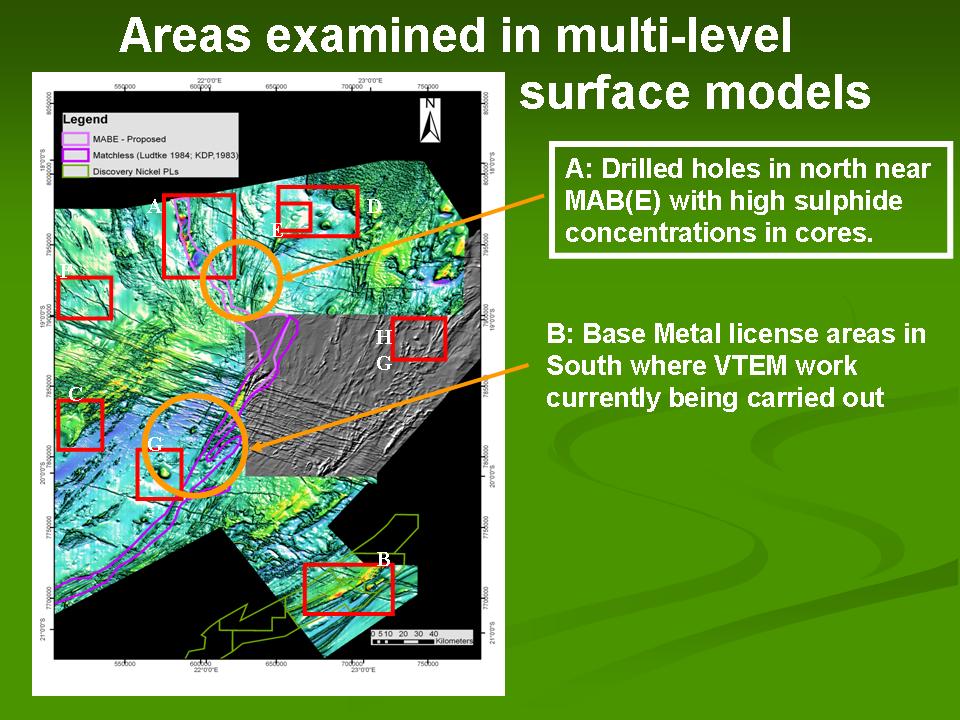

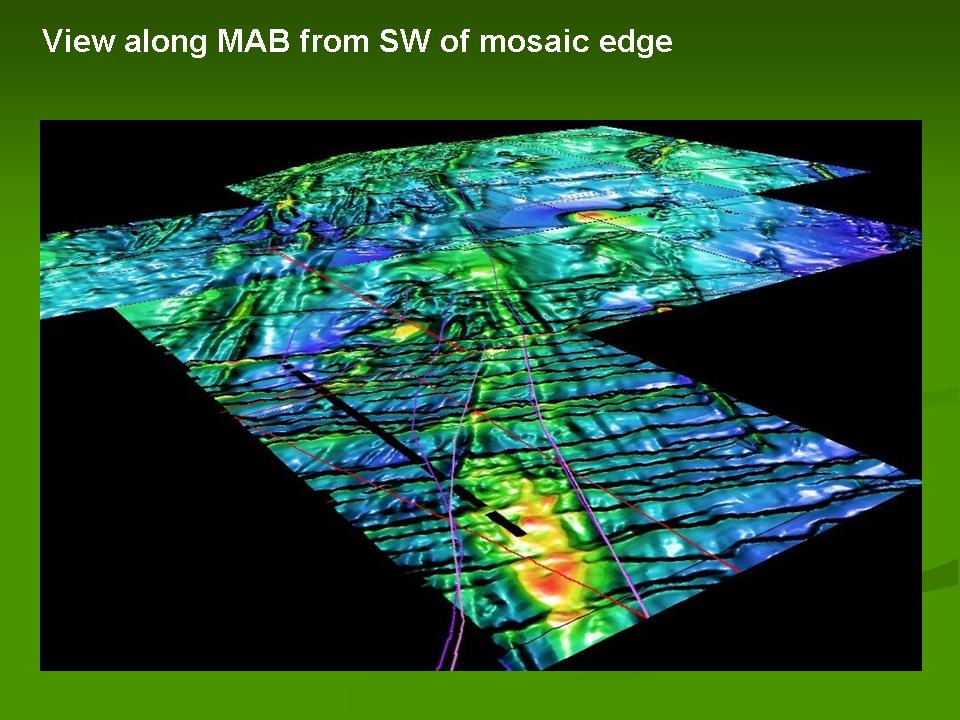

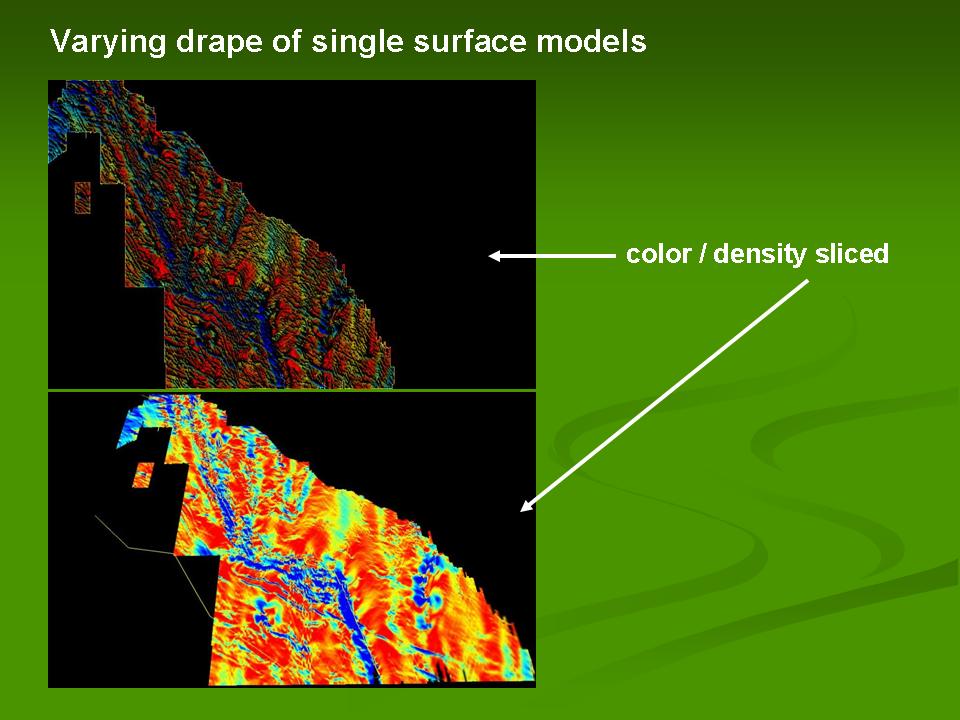

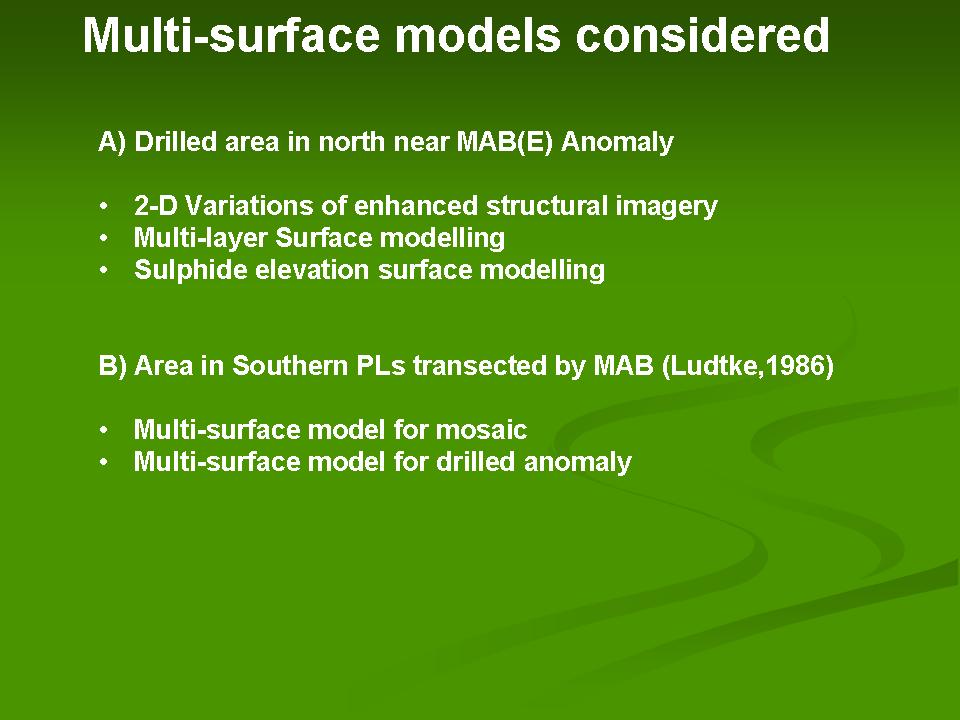

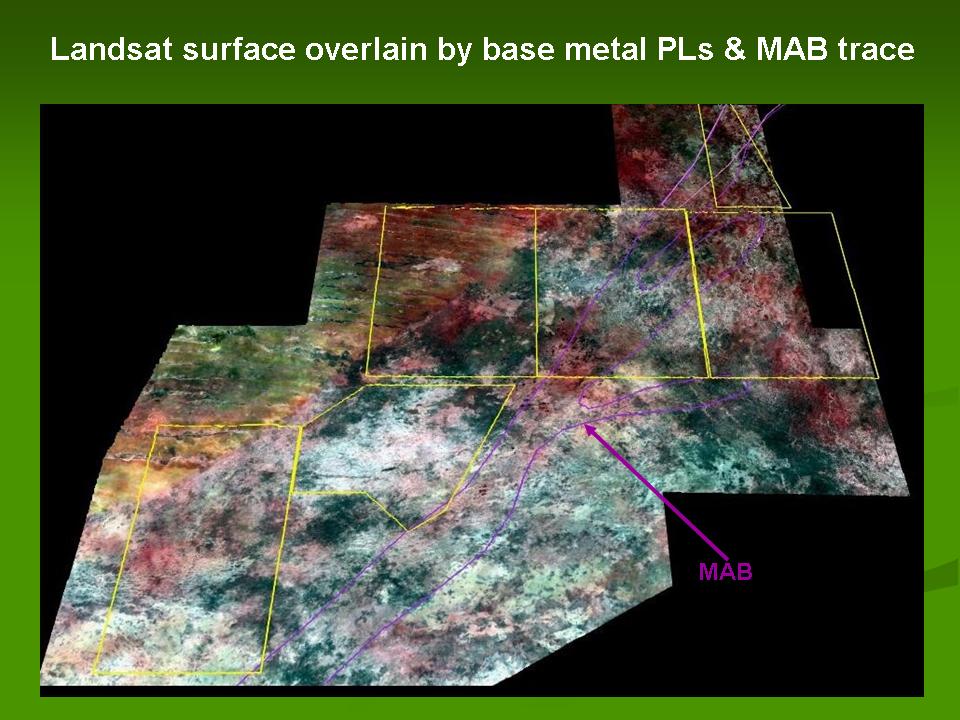

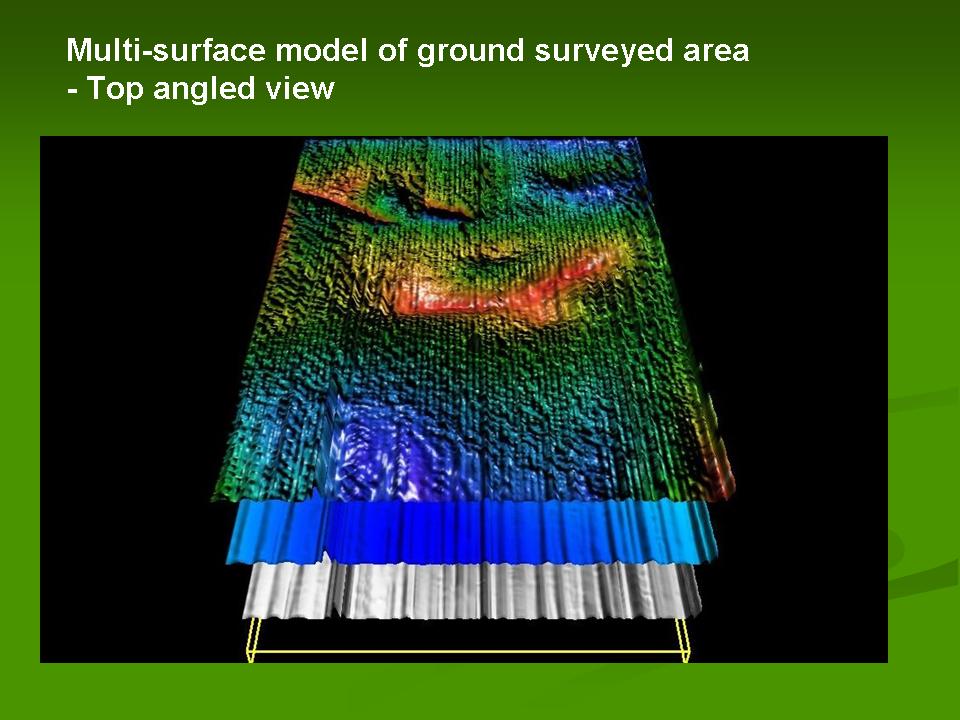

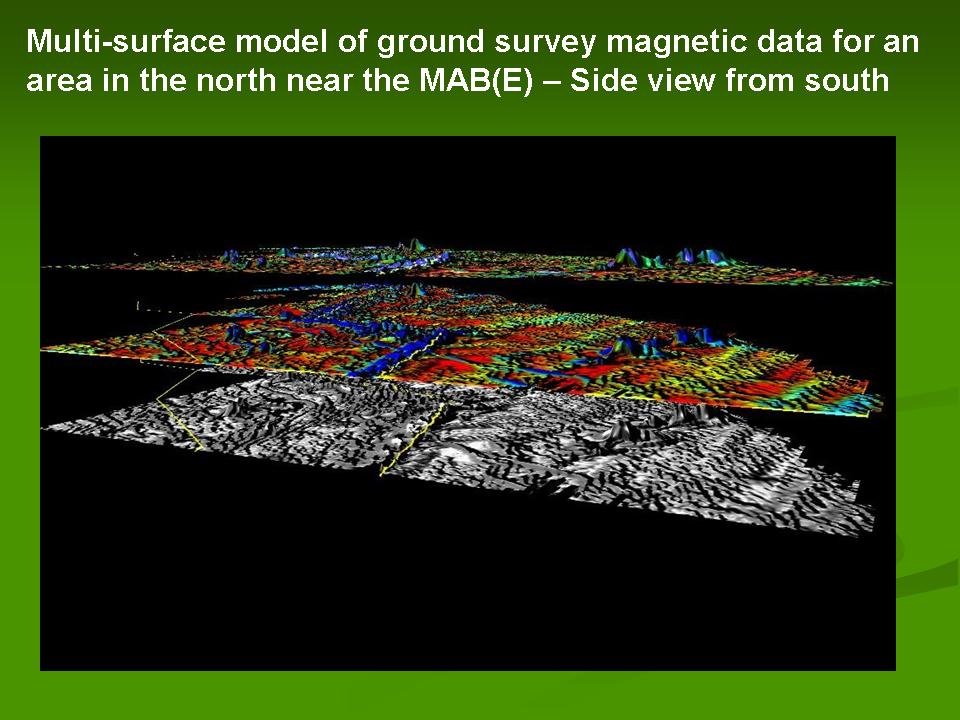

Through my involvement in the Joint Tsodilo Resources - AEON (UCT) research work I have had the opportunity to experience the power of the ERDAS IMAGINE, VirtualGIS, ER Mapper and Titan software firsthand. A series of Multi-layer Surface Models have been examined for the Tsodilo Resources Pty Ltd Base Metal Prospecting License (PL)areas in NW Ngamiland (Botswana). Two areas have been examined one in the southern PL areas and another where drilled sulphides were detected near the MAB(E) as defined by De Wit (2009). The enhanced structural aeromagnetics data imagery created in ER Mapper provide excellent 2-D drapes to apply in the 3-D surface models. The preliminary tests carried out in the ERDAS Imagine Virtual GIS software (see images below) show how this virtual globe environment may be used to stack mutliple variable surfaces at specified intervals. This functionality is particularly useful when attempting to illustrate the overlap in a series of anomalies that are indicative of mineralization potential.

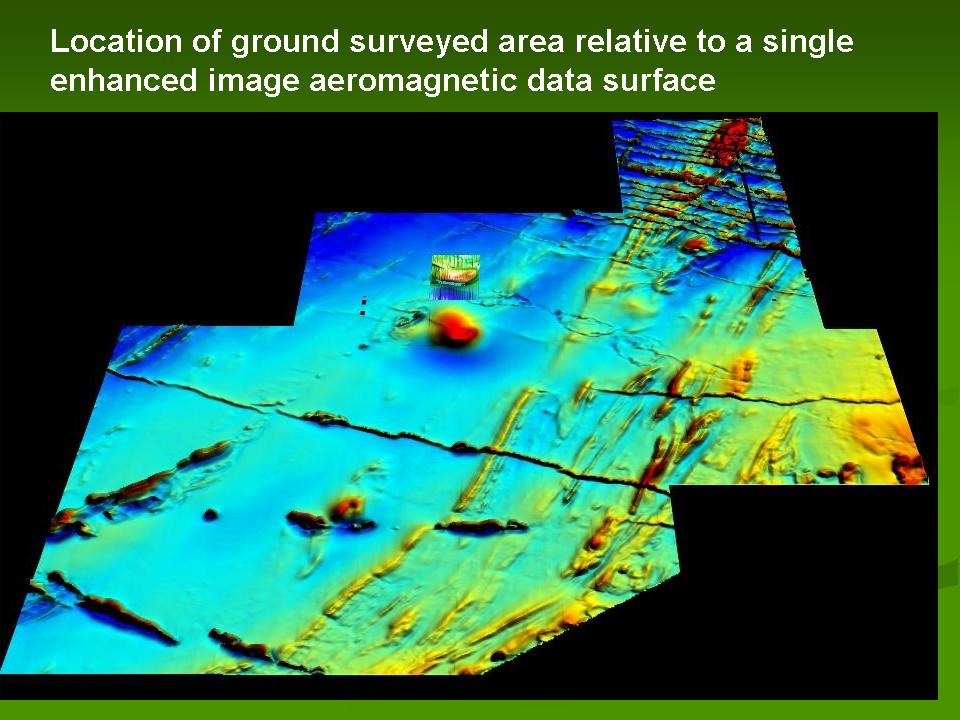

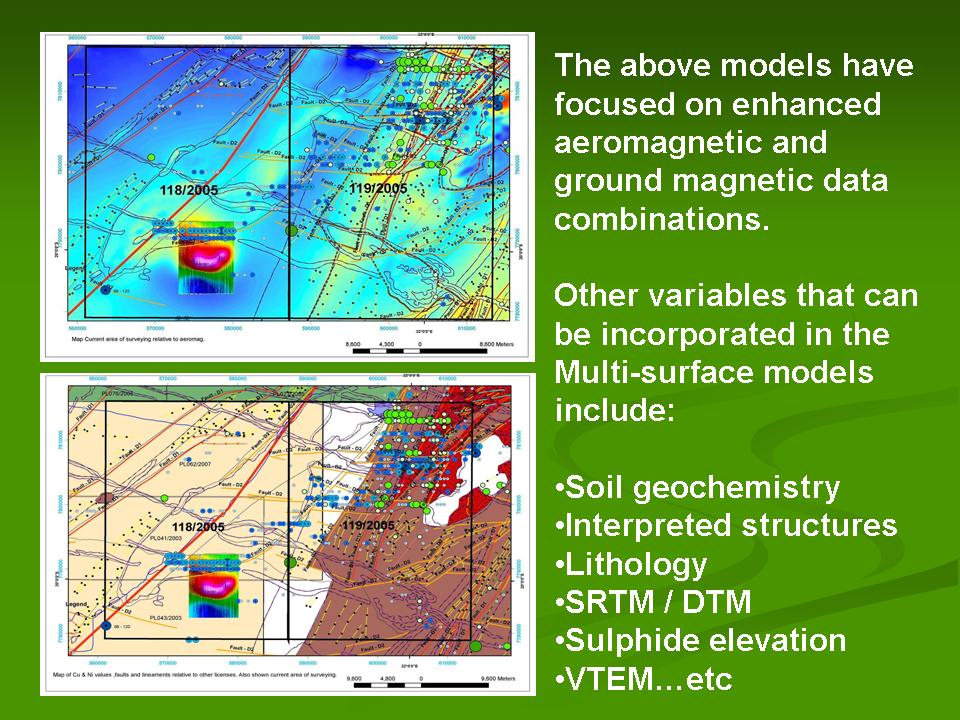

At this point in time only preliminary models based on on enhanced aeromagnetic and ground magnetic data combinations have been used to test the software capabilities / applicability to base metal exploration visualizations. Some of the current and on going work focuses on testing other variables that can be incorporated in the Multi-surface model environment such as:



  • Soil geochemistry
  • Interpreted structures
  • Lithology

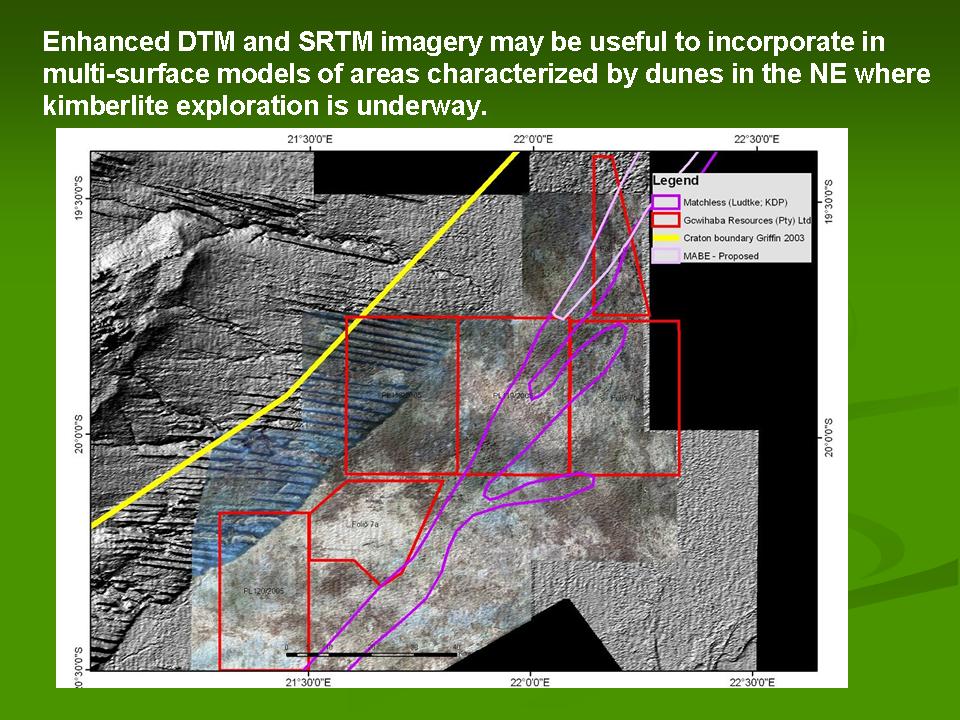

  • SRTM / DTM

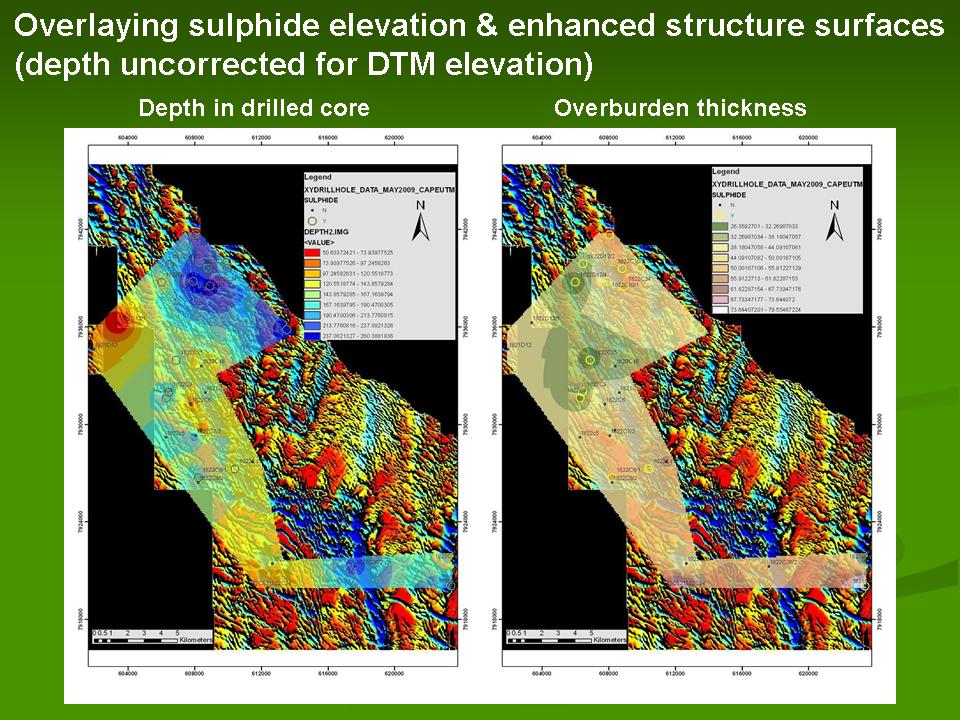

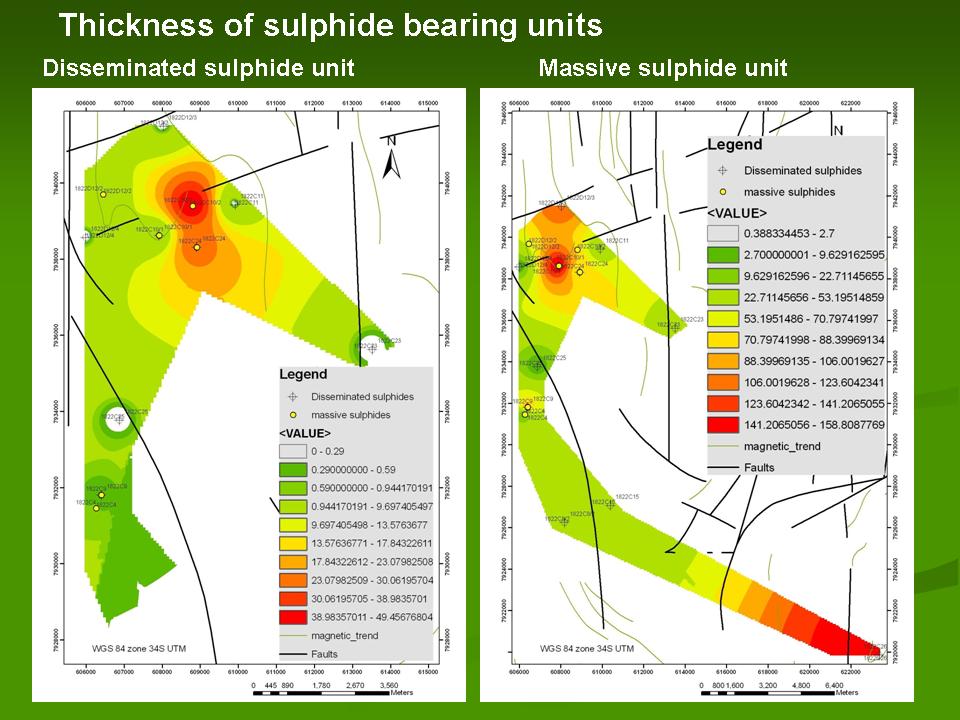

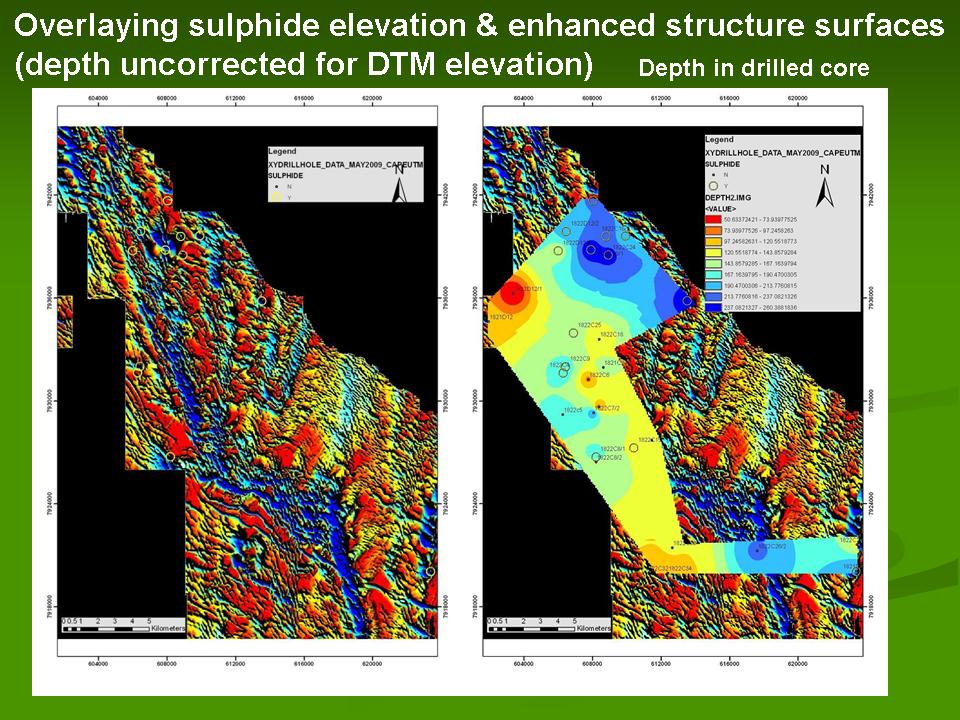

  • Sulphide mineralization surface elevation
  • VTEM data etc...
